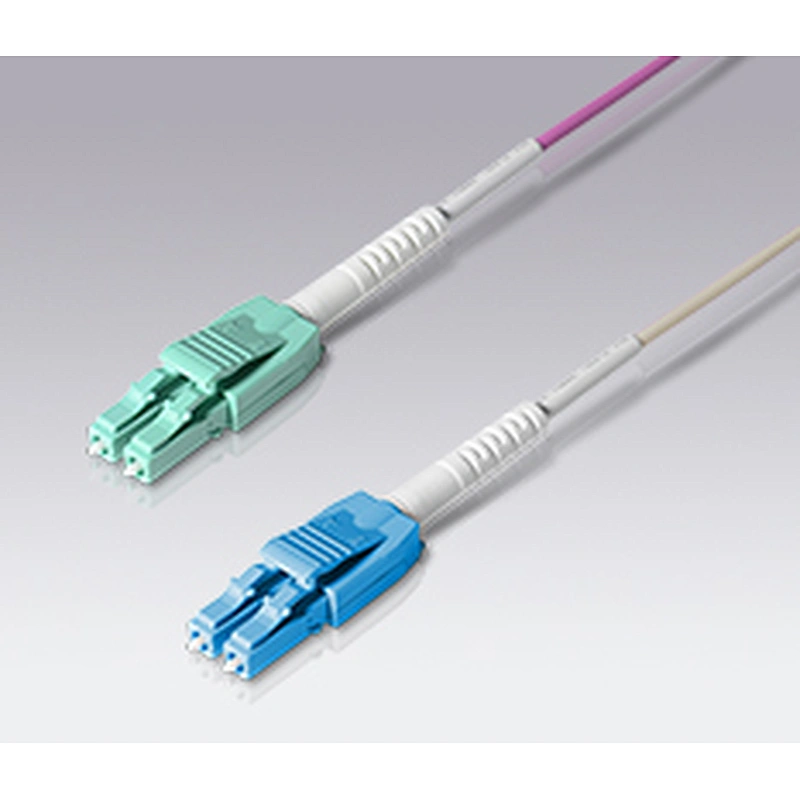

LC Uniboot (Switch Polarity) Specification
Application
1.Data Centers
2.Local Area Networks
3.High-Density Applications
4.Interconnects
5.Cross-connects
Features
1.Uniboot with a Single Housing
2.Unique Push-Pull Design and Function
3.Interchangeable polarity
4.Low insertion loss and added loss.
5.Height of attenuation.
6.High back loss,small volume,light weight.
7.End-face geometry and quality superior than IEC and Telcordia standards.
8.LSZH,OFNP,OFNR cable jacket.
9.Mechanical performance:IEC 61754-20standard.
10.RoHS and REACH materials compliant.
Connector Types
Dimensional Diagrams
1.LC Uniboot 3.0mm patchcord
Patch cord versions
Cable Structure
Cable Parameters
Optical Characteristics
End-Face Geometry
End-Face Qualty (SM)
End-Face Qualty (MM)
Mechanical Characteristics
Application
1.Data Centers
2.Local Area Networks
3.High-Density Applications
4.Interconnects
5.Cross-connects
Features
1.Uniboot with a Single Housing
2.Unique Push-Pull Design and Function
3.Interchangeable polarity
4.Low insertion loss and added loss.
5.Height of attenuation.
6.High back loss,small volume,light weight.
7.End-face geometry and quality superior than IEC and Telcordia standards.
8.LSZH,OFNP,OFNR cable jacket.
9.Mechanical performance:IEC 61754-20standard.
10.RoHS and REACH materials compliant.
Connector Types
| Type | Reference | Note | |
LC | IEC 61754-20 | Single mode | UPC: Blue connectors ,White boots |
| Multimode | UPC: Grey or Aqua Connectors ,White boots | ||
Dimensional Diagrams
1.LC Uniboot 3.0mm patchcord
Patch cord versions
| Jumper tolerance requirement | |
| Overall length (L) (M) | length of tolerance (CM) |
| 0＜L≤20 | + 10/-0 |
| 20＜L≤40 | + 15/-0 |
| L＞40 | +0.5%L/-0 |
Cable Structure
Cable Parameters
| Fiber account | OD(mm) | Nominal Weight (kg/km) | Max.tensile Strength(N) | Max.Crush Resistance (N/ 100mm) | Min.Bending Radius(mm) | |||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| 2 | 3.0±0. 15 | 7.5 | 150 | 80 | 500 | 150 | 20D | 10D |
Optical Characteristics
| Item | Parameter | Reference | |
| Single mode | Multimode | ||
| Insertion loss | Typical value≤0. 15dB ;Maximum≤0.30 | Typical value≤0. 15dB ;Maximum≤0.30 | IEC 61300-3-34 |
| Return loss | ≥50dB (UPC) | ≥30dB (UPC) | IEC 61300-3-6 |
End-Face Geometry
| Item | UPC (Ref:IEC 61755-3- 1) | APC (Ref:IEC 61755-3-2) |
| Radius of curvature (mm) | 7 to 25 | 5 to 12 |
| Fiber height (nm) | - 100 to 100 | - 100 to 100 |
| Apex offset (μm) | 0 to 50 | 0 to 50 |
| APC angle ( °) | / | 8° ± 0.2° |
| Key error (°) | / | 0.2°max |
End-Face Qualty (SM)
| Zone | Range ( μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | IEC 61300-3-35:2015 |
| B:Cladding | 25 to 115 | None | None | |
| C:Adhesive | 115 to 135 | None | None | |
| D: Contact | 135to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
End-Face Qualty (MM)
| Zone | Range ( μm) | Scratches | Defects | Reference |
| A: Core | 0to 65 | None | None | IEC 61300-3-35:2015 |
| B:Cladding | 65to 115 | None | None | |
| C:Adhesive | 115to 135 | None | None | |
| D:Contact | 135to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
Mechanical Characteristics
| Test | Conditions | Reference |
| Endurance | 500 matings | IEC 61300-2-2 |
| Vibration | Frequency: 10to 55Hz,Amplitude: 0.75mm | IEC 61300-2- 1 |
| Cable retention | 100N (patch cable); 5N (pigtail) | IEC 61300-2-4 |
| Strength of coupling mechanism | 80N for 2to 3mm cable | IEC 61300-2-6 |
| Cable torsion | 15N for 2to 3mm cable | IEC 61300-2-5 |
| Fall | 10drops, 1m drop height | IEC 61300-2- 12 |
| Static lateral load | 1N for 1h (patch cable); 0.2N for 5min (pigtail) | IEC 61300-2-42 |
| Cold | -25°C, 96h duration | IEC 61300-2- 17 |
| Dry heat | +70°C, 96h duration | IEC 61300-2- 18 |
| Change of temperature | -25°C to +70°C, 12 cycles | IEC 61300-2-22 |
| Humidity | +40°C at 93%, 96h duration | IEC 61300-2- 19 |
