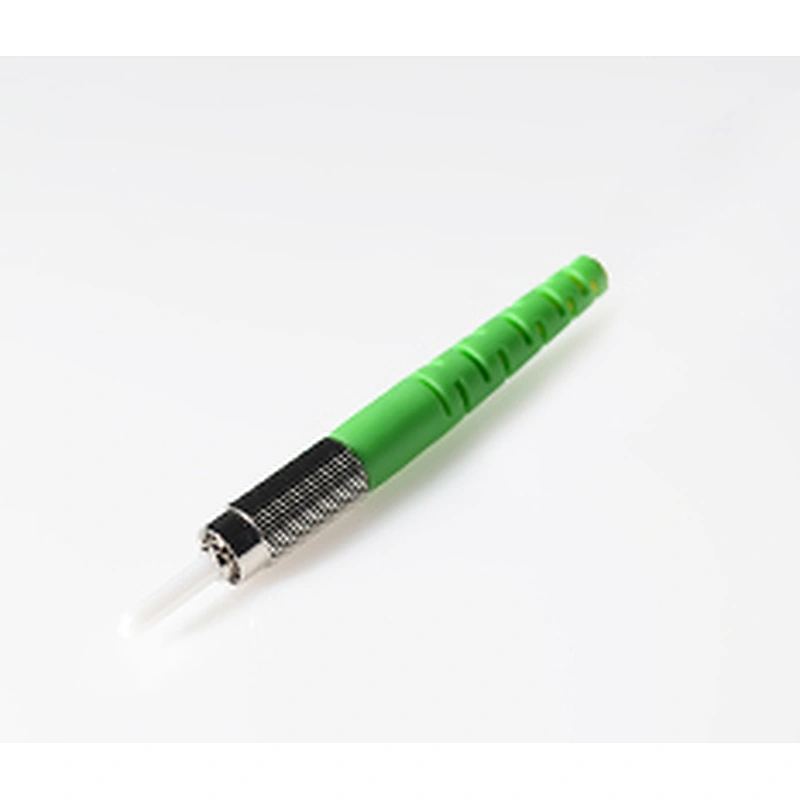

DIN/APC SM Connector specification
2.Fiber optic data communication network
3.Fiber CATV engineering
4.Other optical technology tests
Features
1.The style is diverse,the interface is complete
2.Low insertion loss and added loss
3.Height of attenuation
4.High back loss,small volume,light weight
5.High stability,high reliability
6.Mechanical performance:IEC 874-3.
Specification
Application
1.Optical fiber communication systems engineering2.Fiber optic data communication network
3.Fiber CATV engineering
4.Other optical technology tests
Features
1.The style is diverse,the interface is complete
2.Low insertion loss and added loss
3.Height of attenuation
4.High back loss,small volume,light weight
5.High stability,high reliability
6.Mechanical performance:IEC 874-3.
Specification
| Applicable connector type. | DIN/UPC |
| Optical fiber type | SM |
| Test the wavelength | 1310nm~1550nm |
| Insertion loss | Typical value≤0. 15,maximum ≤0.30 |
| Return Loss | ≥50dB |
| Insert core diameter | ∮2.5 mm |
| Insert core parameter | Aperture:：125.3+ 1/-0μm,Concentricity:≤ 1.0μm |
| Durability | 1000times plug |
| Suitable for optical cable diameter | ∮2.0 mm ， ∮3.0 mm |
| Working temperature | -20℃to +70℃ |
| Storage temperature | -40℃to +85℃ |
